Arduino Alcohol Detector

Step into a world where technology meets responsibility as Robotshapers presents the captivating Arduino Alcohol Sensor blog. Discover the secrets behind breathalyzers, the guardians of safety that accurately measure alcohol concentration in the breath.

An alcohol detector, also known as a breath analyzer, is a device used to measure the alcohol concentration in a person's breath. It uses a variety of techniques to detect and identify the presence of alcohol molecules. Here are some details about breathalyzers:
How they work: Breathalyzers often use sensors such as electrochemical sensors or infrared spectrometers to measure the amount of alcohol in your breath. The sensor detects and measures alcohol molecules in breath samples to estimate the blood alcohol concentration (BAC).
Functionality and Accuracy: Breathalyzers come in different strengths and accuracy. Professional-grade breathalyzers are generally more accurate and provide accurate BAC readings. They may have additional features such as data storage, alcohol correction, and calibration options.
Uses and Applications: Breathalyzers have many uses, including law enforcement, workplace safety, personal breath testing, and alcohol monitoring. They are often used by police, offices and individuals to detect alcohol consumption and enforce alcohol laws.
Calibration and Maintenance: To maintain accuracy, breathalyzers require periodic calibration and regular maintenance.
Calibration ensures that the instrument provides accurate readings and meets design standards.
Legal considerations: It is important to remember that smoke detectors used for legal purposes must comply with certain regulations and certifications. Different jurisdictions may have different requirements for approval and testing of alcohol testing equipment. Although breathalyzers can estimate BAC based on breath alcohol consumption, laboratory blood tests are considered the best method for measuring BAC.

Component Requirements:

MQ2 alcohol sensor:

MQ2 alcohol sensor module There are alcohol vapors. It is based on the MQ2 gas sensor, which is sensitive to various flammable gases, including alcohol.

How it works: The MQ2 Alcohol Sensor Module works on the chemical resistance sensing principle. It is made of metal oxide.
Semiconductor material: When alcohol vapor is formed, they react chemically with the material, causing it to refuse to change. The change in resistance is then measured and used to determine the presence and concentration of alcohol in the air.
Detection Range: The MQ2 Alcohol Sensor Module can detect alcohol vapor in concentrations of 200 ppm (parts per million) to 10,000 ppm.
High Sensitivity: This model is highly sensitive to alcohol vapor and is suitable for detecting the presence of alcohol in a breathalyzer or indoor space.
Analog Output: The sensor module provides an analog output voltage proportional to the detected alcohol concentration. This voltage can be read by a microcontroller like Arduino for further processing and decision making.
Fast Response Time: MQ2 alcohol sensor module has fast response time, which can monitor and detect alcohol gas in real time.
Warm-up time: Most modules require several minutes of warm-up time to give an accurate reading.

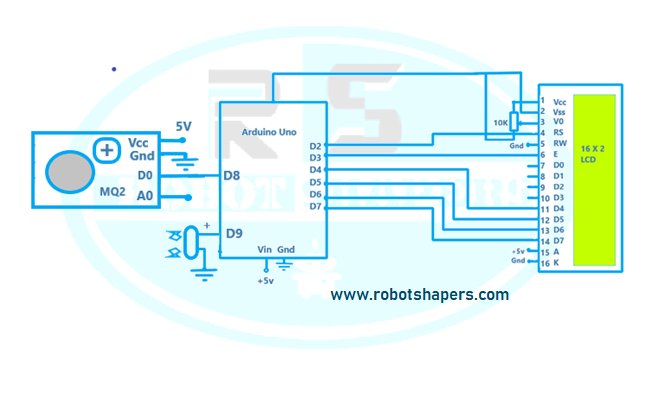

Circuit Diagram:

Code:

#define S 8// Alcohol Sensor
#define B 9
#include
LiquidCrystal lcd(2,3,4,5,6,7);
 void setup()
{
  Serial.begin(9600);
  lcd.begin(16, 2);
 pinMode(S,INPUT);
pinMode(B,OUTPUT);

 lcd.setCursor(0,0);
 lcd.print("ROBOTSHAPERS  ");
 delay(1500);
 lcd.setCursor(0,0);
 lcd.print("ALCOHOL SENSOR");
 delay(1500);
 lcd.clear();
}

void loop()
{
if (digitalRead(S)== HIGH)
{
  lcd.setCursor(0,0);
 lcd.print("ALCOHOL DETECTED");
digitalWrite(B,HIGH);
 delay(500);
  digitalWrite(B,LOW);
 delay(500);

}
if (digitalRead(S)== LOW)
{
  lcd.setCursor(0,0);
 lcd.print("robotshapers.com");
digitalWrite(B,LOW);
}
}

Applications:

The MQ2 Alcohol Sensor Module is mainly used in a variety of applications such as:

Breath Analysis System: Used to measure the alcohol content in human breath for alcohol testing and investigations.
Safety Prevention: The model can be built into the security system to know the indoor alcohol level, it helps to prevent accidents or illegal alcohol consumption.
Safety: It is used in industrial environment to monitor alcohol vapors and ensure compliance with safety regulations.
Home Automation: This model can be used to detect alcohol or use in restricted areas in home automation systems.
Research and development: The MQ2 alcohol sensor module is used for research and development activities related to the detection and analysis of alcohol.
