Smart water wastage avoiding system
As we all know the water from the society supply is always comes early morning. Due to sleeping habit and work burden it is not possible to take care of the water.
robotshapers1 We are making a system which will avoid water flow without adding any sensor in water bucket. We will install these sensor in floor of the washroom. A valve will also be connected at the opening of the water supply. If the water on the surface is stable the flow will not be stopped. If the water is running on the surface

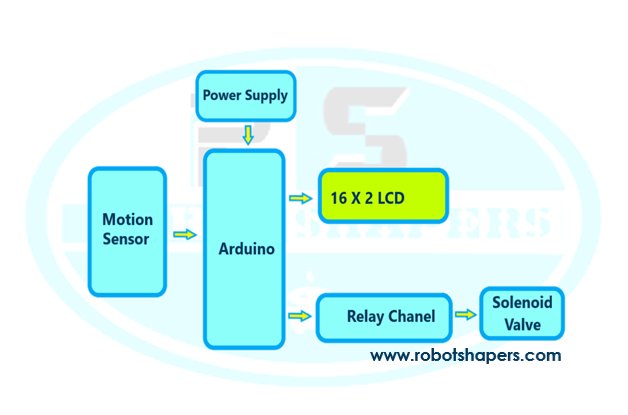

Layout of the system:
Problem Statement:
- The water tank flow required to be monitored in household.
- The sensor on the bucket requires lots of water proofing in electrical circuit.

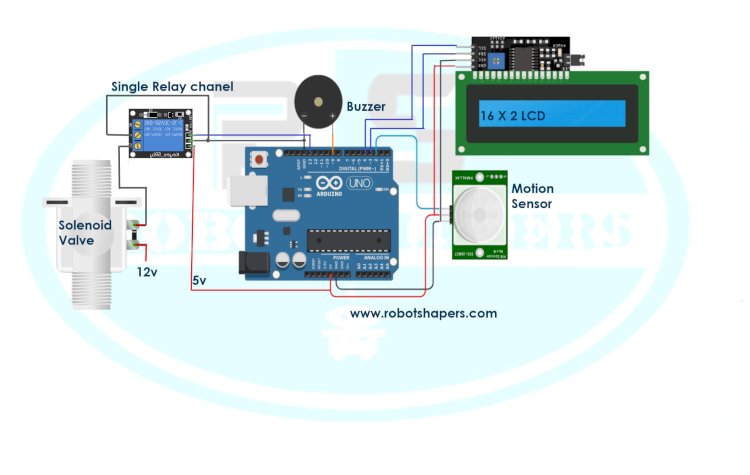

Circuit Diagram:
Working of system:
- As the system starts the motion sensor activates.
- As we turn on the water the valve is signaled to be opened.
- When overflow occurs, it is sensed by the motion sensor installed in the floor and it stops the valve.
- This action stops the water flow and resets the system.
- Parallel display shows the status of valve.
Advantages:
- This system will avoid the water wastage even when we forgot to close the valve.
- The person other than valve opener cannot get the water supply.
