NE555 Timer based Piano system

Unleash the musical maestro within as we dive into the enchanting world of NE555 Piano! Discover how this small yet powerful IC generates unique frequencies for electronic piano sounds, simulating the melodious magic of the grand piano. . Let the NE555 IC be your guide as we harmonize creativity and innovation to create musical wonders at Robotshapers.

Special frequencies corresponding to different notes are generated to produce electronic piano sounds. The fundamental frequency of each note determines these frequencies. For example, the frequency of A4 banknotes is usually 440 Hz. Piano tones can be produced electronically using techniques such as pulse width modulation (PWM) or using waveform synthesis algorithms. The NE555 IC can be used as a timer to generate waveform signals of various frequencies.
These signals can be converted to sound using a loudspeaker or buzzer. By controlling the frequency of the NE555 signal, different piano notes can be created to mimic the sound of the piano. Making a piano using the NE555 IC is an interesting project for music lovers and electronics enthusiasts. Using the timing feature of the NE555, we can create multiple frequencies and create music. This project requires the following components:

Components Required:

NE555 IC

The IC has 8 pins, each with a specific purpose for various functions. These pins are as follows:

GND (Ground): This pin is used as an electrical connection to provide a ground reference to the IC.
TRIG (Trigger): This pin receives a signal as input pin and initiates the timing cycle.
OUT: As the output pin, this pin generates a timing signal or pulse according to the timer.
RESET: This pin is used to reset or reset the timer.
CTRL (Control Voltage): By applying an external voltage to this pin, the threshold and threshold can be adjusted and the operating time is controlled.
THR (Threshold): This pin sets the duration of the cycle time by taking a threshold input that determines when the output signal changes from high to low.
DIS (Discharge): Remove the timer from the output pin and provide the appropriate output in the timing circuit.
VCC (Positive Supply Voltage): For the NE555 IC to function properly, this pin must have a positive supply voltage (usually supplied by an external power supply).

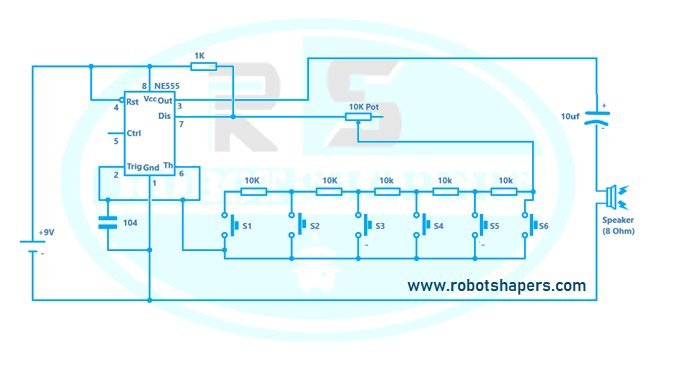

Circuit diagram:

Applications:

555 IC, also known as 555 Timer IC, is an integrated that can be used in many audio applications. Here are some audio applications for the 555 IC:

Oscillator: The 555 IC can work as an astable oscillator or a monostable oscillator, producing various sounds such as beeps, clicks or tones.The duty cycle and duration of the pulse can be found by changing the value of the resistors and capacitors in the circuit.
Tone Generation: Using the 555 IC as a timing device in conjunction with a speaker or buzzer, a tone can be produced from one frequency. This is often found in electronics, generators, and alarm clocks.
Pulse Width Modulation (PWM): The 555 IC can generate PWM signals and finds wide applications in audio such as audio amplifiers and motor control circuits. By controlling the width of the pulses, you can control the volume or speed of the device producing the sound.
Noise effect: 555 IC can be used in electronic sound effect, which is easy to produce noise, such as siren, alarm clock, bell and so on. By controlling the timing device, many sounds can be created for use in toys, games and entertainment.
Metronome: In the electronic metronome, the 555 IC is used as a timer to generate beats or ticks at the desired speed. This feature is especially useful for musicians because it helps them maintain a consistent tone while practicing or working.
Frequency Generation: The 555 IC can be used to generate frequencies for a variety of applications such as frequency measurement, sound measurement, or frequency modulation (FM) circuits.
