Title: Arduino Clock Many of us uses watch in our hand and a wall clock in our homes. But we never have thought of making it by ourselves. In this blog we will learn to make a digital clock using Arduino and LCD display. We will talk about circuit and code algorithm. Firstly we should keep in mind that time cycle counts max at 60. So we have to code that way it goes zero after 60 for minute and second and for hour it should be 12 max as there are 12 hours in a clock cycle.

Adruino based clock is one of the simple and easy practice project. In this projects we just have to interface LCD with arduino and make some basic algorith for seconds, minutes and hour timings. Here the counting becomes zero at 60 for seconds and minutes and for hour this limit is 12. we have to code accordingly so that the time can be displayed properly.

Components Required:

Circuir diagram:

Code:

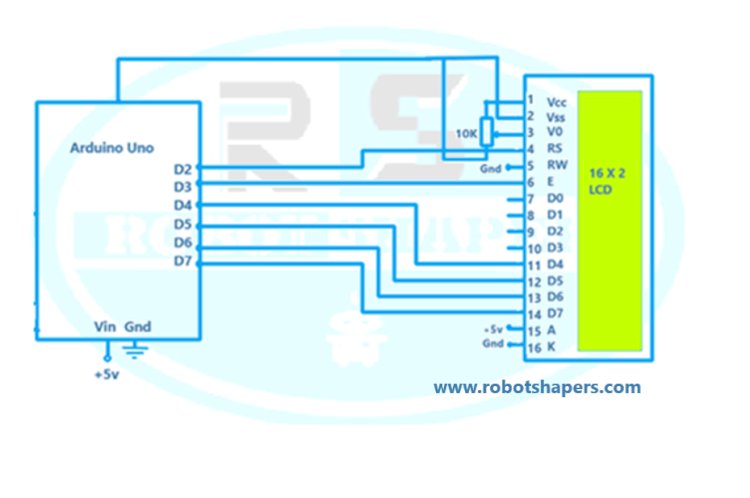

The circuit above is clear that we have 6 digital pins connected with LCD. Now we can see that we are using 4 data pins for 4 bit data. Now we will go through codes and explanation. In codes we will first add the Liquid crystal library.

#include
LiquidCrystal lcd( 13,11,6,5,4,3,);
Then we will take integer variable for second, minute and hour.
	int S =0;
int M =0;
int H =0;
 Then under “void setup()” we will add code for starting serial and LCD  function.
	void setup()
               {
 	  lcd.begin(16, 2);
    	Serial.begin(9600)
               }
Now we will add loop functions under “void loop()”.
	void loop() {
  Serial.print(H);
  Serial.print(":");
  Serial.print(M);
  Serial.print(":");
  Serial.println(S);
  lcd.setCursor(0,0);
  lcd.print("TIME:");
  lcd.setCursor(0,1);
  lcd.print(H);
  lcd.print(":");
  lcd.print(M);
  lcd.print(":");
  lcd.print(S);
 S =S+1;
 M=M;
 H=H;
delay(1000);
lcd.clear();
if (S==60)
{
  S=0;
  M=M+1;
}
if (M==60)
{
  M=0;
  H =H+1;
}
if (H==12)
{
  H=0;
}
}

In codes above we can see the counting” S “starts and limit is set 60 by code for it. Same is for “M” which is taken for minute and similarly for hour it is 12. When circuit is powered by cable the display starts from 0:0:0. After 60 seconds the second bar becomes zero and minute place increases by 1. Same is for the minute and hour. For hour it goes 12 max.
